Technology1

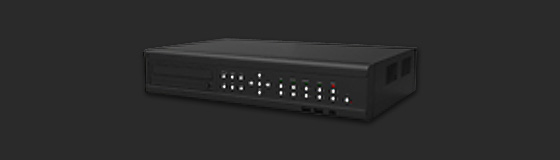

7Brid DVR

Secu-Vision DVRs do support various types of camera image transmission formates as shown below

EX-SDI
HD-SDI
TVI
AVI
CVI
960H
IP

Supporting camera input list

Supporting camera input list
	Camera input resolution
EX-SDI	1280 x 720, 1920 x 1080, 2560 x 1440, 4096 x 2160
HD-SDI	1280 x 720, 1920 x 1080, 2560 x 1440, 4096 x 2160
CVI	1280 x 1080
TVI	1920 x 1080, 2048 x 1526, 2560 x 1440
960H	960 x 480
AVI	1280 x 1080, 2048 x 1536, 2560 x 1440
IP	920 x 1080, 2048 x 1536, 2560 x 1440, 4096 x 2160

Supporting camera input list
	Camera Pixel
EX-SDI	720P, 2MP, 4MP, 8MP
HD-SDI	720P, 2MP, 4MP, 8MP
CVI	2MP
TVI	2MP, 3MP, 4MP
960H	960H
AVI	2MP, 3MP, 4MP
IP	2MP, 3MP, 4MP, 8MP

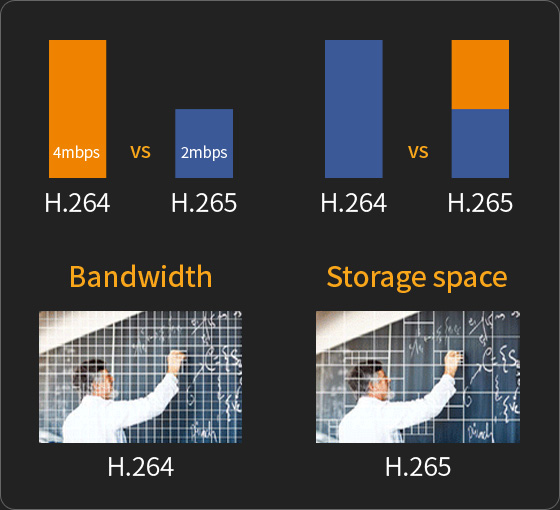

H.265 Codec

H.265 is the next-generation video compression format that is twice efficient as H.264.
H.265 has the following benefits.

H.264 1080P
	H.264 1080P
Bitrate	4Mbps
1CH required storage space per month	483600243010 241024 = 1.24TB
100CH per month	124TB

H.265 1080P
	H.265 1080P
Bitrate	2Mbps
1CH required storage space per month	2836002430810 24*1024 = 0.62TB
100CH per month	62TB

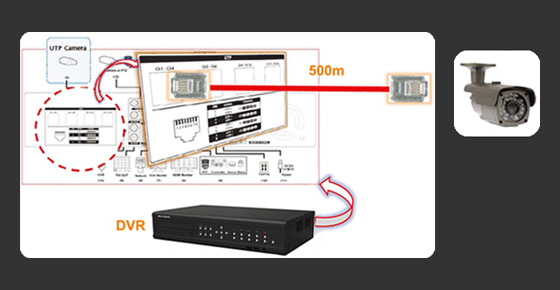

UTP DVR

· Be capable of transmitting over long distance as signal interference is than coaxial cable.
· Easy to install - Easily bendable and thin cables
· Low installation cost

Marine DVR

· Variety of uses

· Recording all actions on deck when fishing. sailing. cruising
· Prevent accidents from and spot(Stern section. Engine room)
· Assist to maneuver and dock.
· Keep as an emdence for marine accidents

· Key features

· Anti - Vibration moisture/damp ingress corrosion UV
· GPS for time correction
· SSD adoption for storage medium
· All-in-One monitor type for saving space

UPS DVR

Key Features

· Built-in UPS
· 4BNC Input / Lite Case
· Keep recording 10 min. when black out, power failure occurred
· Affordable cost / for SOHO
· Additional accessories : UPS BOX for UPS function of camera
· Used non-explosive safe battery

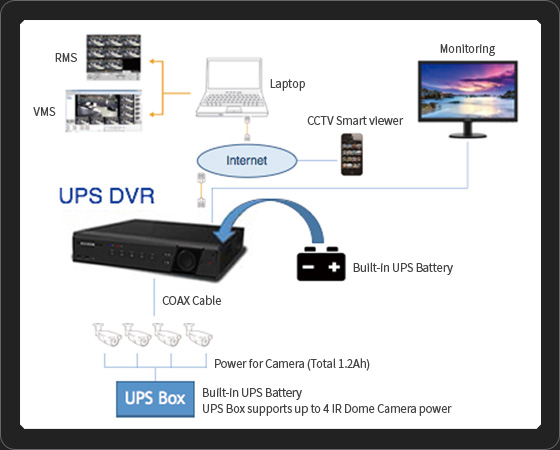

System configuration
