Home > Products > HD-Fivebrid Solution > HD-Fivebrid Camera > HD-Fivebrid Indoor Dome Camera

SDP22T-FIR8024N

AHD Tribrid Plastic DOME With IR LED CAMERA
(Korea cctv camera, Korea cctv dvr,cctv camera, secuvision)

• 1/2.9' SONY CMOS 2.48M Sensor
• Full HD (1920 x 1080P 30fps) A-HD Output
• DWDR (Digital Wide Dynamic Range)
• 3D + 2DNR (Digital Noise Reduction)
• SENS UP, SMART IR, DEFOG
• HLMASK (High Light Masking)
• Privacy Masking, Motion Detection
• LSC (Lens Shading Correction)
• ACE (Adaptive Contrast Enhancer)
• 3.6mm Fixed Mega Pixel Lens
• OSD (On Screen Display-Option)




Features

• 1/2.9' SONY CMOS 2.48M Sensor
• Full HD (1920 x 1080P 30fps) A-HD Output
• DWDR (Digital Wide Dynamic Range)
• 3D + 2DNR (Digital Noise Reduction)
• SENS UP, SMART IR, DEFOG
• HLMASK (High Light Masking)
• Privacy Masking, Motion Detection
• LSC (Lens Shading Correction)
• ACE (Adaptive Contrast Enhancer)
• 3.6mm Fixed Mega Pixel Lens
• OSD (On Screen Display-Option)

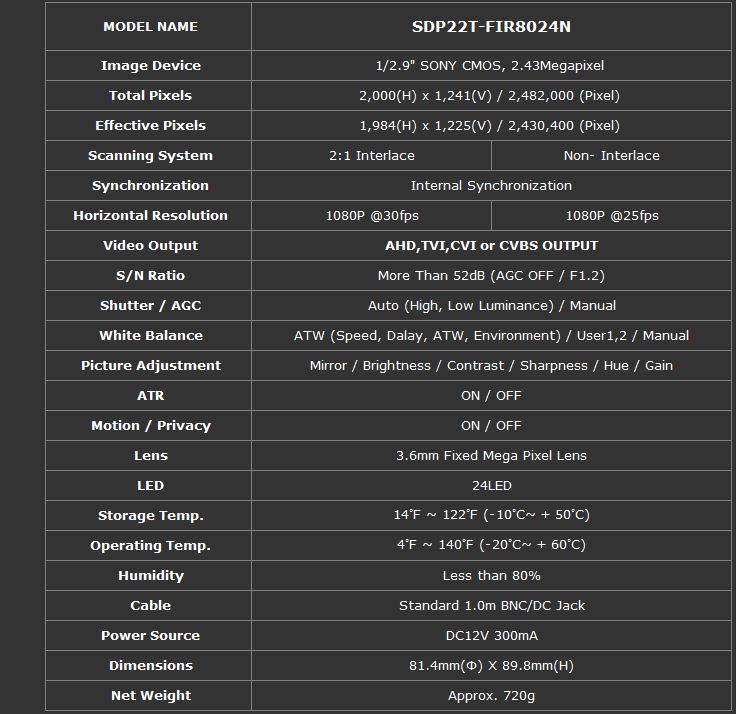

Specification






Connection Layout





Top
