- Displaying high resolution pictures and rapid image processing
by the SOC chip
- Displaying video from at real time
- Auto sequence mode
-When it detects any motion, it changes to auto sequence mode
and ring the alarm
- Supporting NTSC & PAL system
- Displaying the date and time, the name of the channel and the
current status
- RS-232C/RS-485 Communication port for external devices
- Various mode of screen split

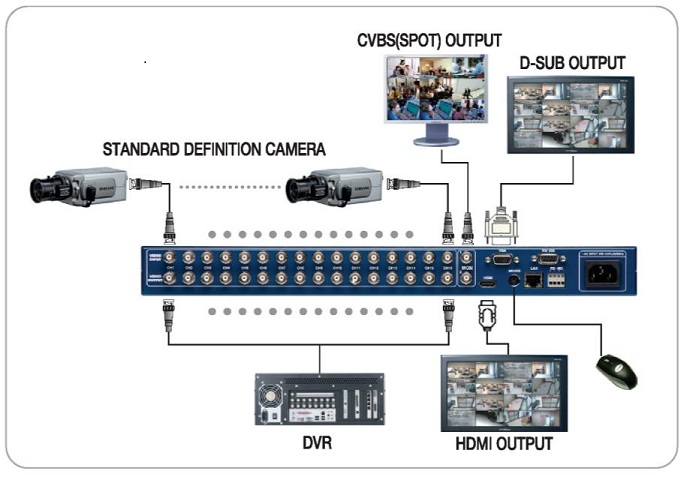

MODEL | SV-09HDS | SV-16HDS | |
Video Input | BNC-F(75Ω 1Vp-p) x 9 | BNC-F(75Ω 1Vp-p) x 16 | |
Video Output | BNC-F (Looped through | BNC-F (Looped through | |
HDMI x 1, D-Sub x 1, BNC x 2 | |||
Video | HDMI | Full HD:1920x1080p@50/60Hz | |
HD:1920x1080i@50/60Hz | |||
WSXGA:1680x1050@50/60Hz | |||
SXGA:1280x1024@50/60Hz | |||
D-SUB | SXGA, WSXGA | ||
BNC-F | (Monitor)720x480@50/60Hz | ||
Video Format | NTSC/PAL Selectable | ||
Screen Split Mode | 1,4,6,7,8,9 | 1,4,6,7,8,9,10,12,13,16 | |
OSD | Up to 9 Characters | ||
External | IR Receiver | Remote Control | |
4Pin Mini Din | Mouse | ||
RJ-45 | Firmware Upgrade | ||
RS-232C | External device connection | ||
Alarm I/O | SV-16AIU (Optional) | ||
Power | AC 100~240V, 50/60Hz | ||
Power Consumption | 7.5W | 8.2W | |
Temperature/Humidity | 0°C~+50°C / 0~80% | ||
Casebody/Weight | Steel / 3.7Kg | Steel / 4Kg | |
Dimension(mm) | 430(W)x44(H)x350(D) | 430(W)x44(H)x350(D) | |
|
|
|
|
|
|
|
|
MODEL | SV-16AUI | ||
Alarm Input | Normal Open Type | ||
Alarm Output | Photo Mos Relay | ||
Signal trans. Distance | Max. 10m(RS-232) | ||
Remote Control | Comm. Mode | RS-232 | |
Port | 9Pin D-SUB | ||
Baud rate | 9600bps | ||
Power Input | AC 100~240V, 50/60Hz | ||
Temperature/Humidity | 0°C~+50°C / 0~80% | ||
Casebody/Weight | Aluminum / 200g | ||
Dimension(mm) | 67(W)x108(H)x21(D) |
