ØDigitall Full HD Splitter
ØDiplaying high resolution pictures and
rapid image processing by the SOC chip
- Displaying high resolution pictures and rapid image processing by the SOC chip
- Displaying video from at real time
- Auto sequence mode
- When it detects any motion, it changes to auto sequence mode and ring the alarm
- Supporting NTSC & PAL system
- Displaying the date and time, the name of the channel and the current status
- RS-232C / RS-485 communication port for external devices
- Various mode of screen split
MODEL |
SV-09HDS |
SV-16HDS |
|

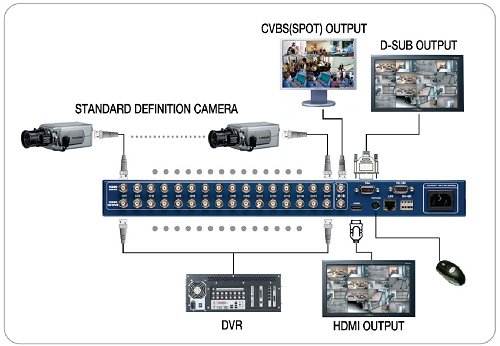

Video Input |
BNC-F(75Ω 1Vp-p) x 9 |
BNC-F(75Ω 1Vp-p) x 16 |
|
Video Output |
BNC-F (Looped through |
BNC-F (Looped through |
|
HDMI x 1, D-Sub x 1, BNC x 2 |
|||
Video |
HDMI |
Full HD:1920x1080p@50/60Hz |
|
HD:1920x1080i@50/60Hz |
|||
WSXGA:1680x1050@50/60Hz |
|||
SXGA:1280x1024@50/60Hz |
|||
D-SUB |
SXGA, WSXGA |
||
BNC-F |
(Monitor)720x480@50/60Hz |
||
Video Format |
NTSC/PAL Selectable |
||
Screen Split Mode |
1,4,6,7,8,9 |
1,4,6,7,8,9,10,12,13,16 |
|
OSD |
Up to 9 Characters |
||
External |
IR Receiver |
Remote Control |
|
4Pin Mini Din |
Mouse |
||
RJ-45 |
Firmware Upgrade |
||
RS-232C |
External device connection |
||
Alarm I/O |
SV-16AIU (Optional) |
||
Power |
AC 100~240V, 50/60Hz |
||
Power Consumption |
7.5W |
8.2W |
|
Temperature/Humidity |
0°C~+50°C / 0~80% |
||
Casebody/Weight |
Steel / 3.7Kg |
Steel / 4Kg |
|
Dimension(mm) |
430(W)x44(H)x350(D) |
430(W)x44(H)x350(D) |
MODEL |
SV-16AUI |
||
Alarm Input |
Normal Open Type |
||
Alarm Output |
Photo Mos Relay |
||
Signal trans. Distance |
Max. 10m(RS-232) |
||
Remote Control |
Comm. Mode |
RS-232 |
|
Port |
9Pin D-SUB |
||
Baud rate |
9600bps |
||
Power Input |
AC 100~240V, 50/60Hz |
||
Temperature/Humidity |
0°C~+50°C / 0~80% |
||
Casebody/Weight |
Aluminum / 200g |
||
Dimension(mm) |
67(W)x108(H)x21(D) |
